Staircase Chandelier Size Guide: Height, Width and Drop Length

Size a staircase chandelier from two measured limits: the maximum total drop and the maximum horizontal fixture envelope. Do not choose from ceiling height or a product photo alone. First establish the ceiling mounting point, the lowest fixture point approved for the actual stair layout, and the clear width available between railings, walls, landings, and walking routes.

Then compare those limits with the selected fixture’s verified body height, widest point, canopy, and suspension configuration. Exact suitability depends on the selected size, fixture body height, suspension configuration, ceiling condition, stair geometry, and final installation measurements.

What to Measure Before Choosing a Staircase Chandelier

A staircase chandelier must fit vertically and horizontally at the same time. A long fixture can still be unsuitable if its widest point crowds a railing. A narrow fixture can still be unsuitable if its lowest element enters a walking route or creates a poor view from a landing.

If any of these inputs is unknown, pause the fixture-size decision. A ceiling-height number by itself is not enough to approve a staircase chandelier.

How to Calculate Drop Length

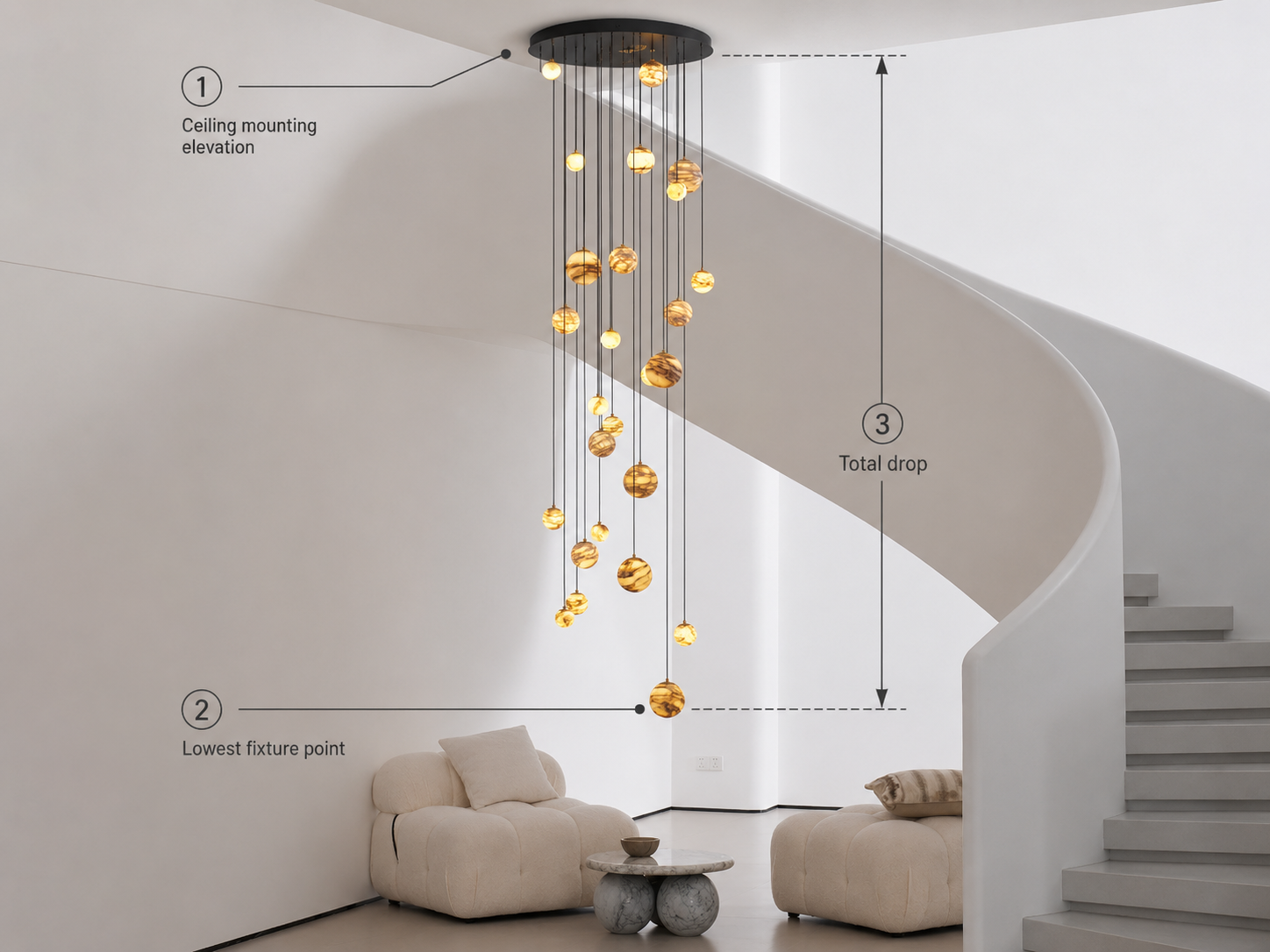

Maximum tested total drop = ceiling mounting elevation − approved lowest fixture elevation.

Measure both elevations from the same floor or project datum. The result is the available distance from the ceiling mounting plane to the chandelier’s lowest point. It is not automatically the fixture body height, cable length, rod length, or decorative drop length.

A Hypothetical Drop-Length Example

Assume an open stair void has a ceiling mounting elevation of 216 inches above the lower-floor datum. After reviewing the actual walking route, landing, railing, and local requirements, the project professional approves a lowest fixture elevation of 126 inches.

Maximum tested total drop: 216 − 126 = 90 inches.

Now assume a hypothetical candidate has a 54-inch fixture body and the tested canopy, connection, and suspension arrangement occupies another 6 inches before the adjustable suspension is counted.

Remaining suspension budget: 90 − 54 − 6 = 30 inches.

These values demonstrate the calculation only. They are not a universal clearance rule or a recommendation for a specific product. If the verified body, canopy, and suspension cannot fit inside the approved 90-inch total drop, test another size or configuration.

Recommended Chandelier Width

Maximum tested fixture envelope = clear opening width − left planning allowance − right planning allowance.

The allowances must reflect the real stairwell: railings, walls, windows, landing edges, handrails, moving paths, cleaning access, and the way the fixture can move during installation. Use the chandelier’s widest verified dimension, including decorative parts. Do not infer width from photography.

For a hypothetical 78-inch clear opening, testing 15 inches on each side leaves a 48-inch horizontal envelope:

78 − 15 − 15 = 48 inches.

This does not prove that a 48-inch chandelier is suitable. It creates a maximum test envelope that still needs installer review, full-size marking, and checks from each level.

Recommended Chandelier Height

Fixture body height describes the physical decorative body. Total hanging height runs from the ceiling mounting plane to the lowest point after the canopy, connectors, rods, cables, chains, and decorative elements are included. Treating these as the same measurement can produce a chandelier that hangs lower than expected.

• Fixture body height: the verified top-to-bottom dimension of the decorative fixture body.
• Total hanging height: the completed ceiling-to-lowest-point dimension.
• Suspension length: only the adjustable or specified section between the mounting assembly and fixture body.
• Horizontal envelope: the fixture’s widest completed footprint, including protruding decorative parts.

Ask for current dimensions for the selected size and configuration. Do not transfer measurements from a different variant, product photo, or similar chandelier.

Round vs Rectangular Canopy

These are forms to test, not fixed room-to-product rules. Compare the measured envelope with the verified dimensions of fixtures in the Staircase Chandeliers collection, then check taller options in High Ceiling Chandeliers or vertically layered options in Cascade Chandeliers.

Viewing Angles From Both Floors

A staircase chandelier is seen while people move. Mark the proposed envelope and lowest point, then review the plan from the lower floor, the first steps, each landing, the upper hallway, and any adjacent entry or living area.

• Can the full form be read from the main entry, or does a wall or landing cut it off?
• Does the upper landing look directly into unfinished hardware or a crowded canopy?
• Does any decorative element appear to enter a walking or reaching route?
• Do windows create a silhouette that changes how dense the fixture appears?
• Can the fixture be assembled, cleaned, and serviced at the proposed location?

Installation, Structural Support and Cleaning Access

The installation plan is part of fixture selection. Ask a qualified installer to review the ceiling structure, junction box, mounting method, electrical requirements, access equipment, assembly route, and future service plan. A decorative fixture should not be approved only because its dimensions fit on paper.

1. Confirm the final canopy location and whether it matches the intended visual center.
2. Verify the ceiling structure and mounting plan for the selected fixture.
3. Confirm how the packaged components will reach the installation area.
4. Plan access to bulbs, drivers, connections, and removable decorative pieces.
5. Record the approved lowest point before suspension lengths are finalized.
6. Keep the selected product and variant dimensions with the installation plan.

For additional access questions, use the two-story chandelier access-planning guide. It helps identify when ladders, scaffolding, lifts, or professional servicing need to be discussed before the fixture is ordered.

Common Planning Mistakes

• Choosing from ceiling height alone: this ignores the opening width, landings, walking route, and approved lowest point.
• Using fixture body height as total drop: the canopy, connections, and suspension can change the completed ceiling-to-lowest-point dimension.
• Measuring only the central frame: the widest glass, stone, shade, branch, or arm determines the horizontal envelope.
• Approving one camera angle: the upper landing and side views may reveal crowding that is invisible from below.
• Leaving service access until installation day: future cleaning and component access should be part of selection.

Staircase Chandelier Size Chart

The chart below gives a practical starting point for choosing a staircase chandelier by ceiling height. These are general guidelines, not fixed rules. The best size still depends on the stairwell width, viewing angle, material, and chandelier style.

A slim chandelier can often be taller without looking heavy. A dense crystal or wide metal chandelier may need to be shorter or more carefully positioned so it does not overpower the stairwell.

How to Choose a Chandelier by Staircase Type

Narrow Stairwell

For a narrow stairwell, choose more height and less width. A slim vertical chandelier, compact cascade, or narrow branch chandelier can fill the vertical space without crowding the walls or railing.

Avoid very wide chandeliers unless the fixture is placed in a large open void beside the stairs.

Open Stairwell

An open stairwell can usually support a larger chandelier because there is more air around the fixture. Cascading chandeliers, branch chandeliers, glass clusters, and multi-light designs often work well in this layout.

Curved Staircase

A curved staircase often looks best with a chandelier that has movement. Branch chandeliers, cascading chandeliers, and rounded cluster designs can follow the visual flow of the curve.

Two-Story Staircase

A two-story staircase usually needs a chandelier with stronger vertical presence. The fixture should look balanced from both floors, not just from the entry level.

For very tall two-story spaces, consider a custom chandelier so the drop length, body height, and width can be planned around the exact stairwell.

Staircase Beside a Window

If the staircase chandelier is visible through a tall window, consider how it looks from outside at night. In many luxury homes, the stairwell chandelier becomes part of the exterior impression as well as the interior design.

Where Should a Staircase Chandelier Be Placed?

The best placement depends on the staircase layout. In an open stairwell, the chandelier is often centered in the vertical void. In a staircase beside a wall, it may be better to center the chandelier over the open side rather than directly above the stair treads.

The chandelier should feel balanced from the main viewing angles:

• From the entryway or lower floor
• From the staircase while walking up or down
• From the upper hallway or landing
• From nearby rooms if the stairwell is open
• From outside if the chandelier is visible through a window

If the electrical box is not in the ideal position, a larger or custom canopy may help shift the hanging point and create a cleaner layout.

Best Materials for Staircase Chandeliers

Alabaster

Alabaster chandeliers create a warm, natural stone glow. They are a strong choice for staircases where the lighting should feel refined, soft, and architectural rather than sharp or overly bright.

Alabaster works well with marble, travertine, plaster, wood, brass, and neutral interiors. For natural stone chandelier options, explore the Alabaster Lighting Collection.

Murano-style glass

Murano-style glass chandeliers are ideal when the staircase needs color, artistry, or a more decorative focal point. Petal glass, disc glass, tube glass, and faceted glass can each create a different visual effect.

Murano-style glass works especially well in staircases that are visible from an entryway, living room, or upper hallway. View the Murano-style glass Lighting Collection for sculptural glass chandelier ideas.

Crystal

Crystal chandeliers bring reflection, sparkle, and a formal luxury look. They work best in grand staircases, double-height foyers, and homes with marble floors or polished wall finishes.

Brass

Brass finishes add warmth and elegance. They pair well with cream walls, natural stone, wood railings, beige interiors, and soft modern spaces.

Glass

Clear, frosted, or textured glass can make a staircase chandelier feel lighter and more open than dense crystal or metal. This is helpful when the stairwell needs scale but should not feel visually heavy.

Frequently Asked Questions

How do you calculate staircase chandelier drop length?

Subtract the installer-approved lowest fixture elevation from the ceiling mounting elevation, using the same floor or project datum. The result is the maximum tested total drop from the mounting plane to the lowest point.

Is fixture body height the same as total hanging height?

No. Fixture body height covers the decorative body. Total hanging height includes the completed canopy, connections, suspension, body, and lowest decorative element.

How wide should a staircase chandelier be?

There is no universal width. Start with the clear opening, subtract the side allowances approved for the actual railings, walls, landings, walking routes, and installation method, then compare the result with the fixture’s widest verified dimension.

What if the junction box is not at the visual center?

Do not assume a canopy or suspension system can correct the offset. Record the junction-box position and intended visual center, then have the installer and lighting supplier review the selected fixture configuration.

What should I send before requesting a staircase chandelier size?

Send the ceiling mounting elevation, approved lowest point, clear opening dimensions, junction-box location, landing and railing measurements, photos from every level, and the selected product or style direction.

When should a custom configuration be considered?

Consider a custom review when the verified standard configuration does not fit the measured total-drop or horizontal envelope, when the canopy cannot align with the intended layout, or when the project needs a documented suspension arrangement. Available changes must be confirmed for the selected fixture.

Related Staircase Chandeliers

Start with the Staircase Chandeliers collection and compare only fixtures whose current dimensions fit the tested drop and horizontal envelope. Use the broader Chandeliers collection when the shape is still undecided.

If the standard dimensions do not fit, review verified customization options or send the measurement sheet through project lighting support. Interior designers, architects, builders, and hospitality teams can also use the Trade Program path for project coordination.
