Short Answer
Plan a staircase chandelier under beams or a coffered ceiling by drawing the actual ceiling bay, mounting assembly, and complete decorative body as three separate layers. A plate can fit between beams while the shades or branch ends extend beyond it below. Decide how the fixture relates to the stair opening and beam grid, then check every nearby landing and route. A visible beam is not automatically an approved support. Resolve the exact structure, wiring, plate, suspension, and installation access with the project professionals. Select an option-specific drawing before treating a product's longest dimension as the only limit on bay fit.
Beams and coffers give the ceiling a strong rhythm before a chandelier is introduced. A fixture centered within one bay may look off-center over the stair, while a body aligned with the stair may cross several ceiling lines. The practical task is to coordinate those references and distinguish decorative architecture from the actual mounting proposal.
Draw the Ceiling Bay, Plate, and Body Separately
Measure the bay between finished beam or coffer faces. Include changes in depth, neighboring ceiling levels, and any access panels. Then place the actual proposed ceiling cover and its attachment layout on that plan. A product diameter or overall width should not be copied onto the plate unless the drawing explicitly defines it that way.
Draw the decorative body at its installed levels in section. A shade may extend past a plate or sit below a beam without being visible in a ceiling plan. Keep the body, suspension, and total installed drop distinct. The exact three-dimensional proposal determines the relationship, not a single plan rectangle.
Choose an Alignment Hierarchy
Compare the stair opening center, bay center, main arrival view, and existing electrical location. These references may differ. Decide which relationship should lead the composition while the complete envelope remains suitable for the actual stair. Record the selected direction on the drawing, especially for a long linear body.
If a linear arrangement follows the flight, check its depth as well as length. If it follows a ceiling beam, compare the lower view against the railing. A round form avoids a long directional axis but still needs a complete outer envelope. None of these choices establishes the support design.
Resolve What the Beam Actually Is
A visible beam can be structural, a decorative enclosure, or part of a more complex ceiling assembly. Have the responsible professionals establish the site condition and approved support before specifying attachment. Do not turn the beam's appearance into a load-bearing assumption.
Also coordinate cable routes, ceiling access, drivers or lamps, and any separately supplied plate. Several large decorative products identify a body size while the final ceiling assembly remains a project decision. That information belongs in the purchase proposal rather than being left for an installer to improvise above the stair.
Worked Example: A Plate Fits but the Body Is Wider
Suppose a hypothetical finished bay is 90 cm wide. A proposed 60-cm plate leaves a geometric difference of 15 cm at each side when centered: (90 − 60) ÷ 2. A 100-cm-wide decorative body, however, is 10 cm wider than the bay and extends 5 cm past each bay edge in the plan projection.
Those numbers are an illustration, not required clearances or installation approval. The body may sit below the beams, and the real decision also includes depth, height, movement, tolerances, support, and access. The example simply shows why plate fit and body fit are separate checks. Obtain the approved section before deciding whether the composition works.
Keep the Final Bay Drawing With the Selected Option
Identify the product, size option, direction, mounting reference, plate, complete drop, and outer decorative boundary. Mark beam faces and finished ceiling levels. If the layout changes after the drawing is reviewed, update the same document rather than leaving several partly approved versions in circulation.
Retain installation and future-access information with that drawing. A bay that looks balanced on day one may be difficult to reach later if the service route was omitted. Compare the whole project before choosing an oversized statement form or requesting a custom ceiling assembly.
Planning Comparison
| Decision | Useful comparison | Resolve before purchase |
|---|---|---|
| Plate within one bay | Finished plate outline and attachment proposal | Body can project beyond the plate |
| Linear body along a beam | Length, depth, direction and section | Beam appearance does not establish support |
| Body below several coffers | Whole-body silhouette and every ceiling level | Coordinate installation and later access |
Six Product Comparisons
Compare these designs for the planning questions above. Keep the exact ordered option, complete installed dimensions, and project requirements together when reviewing a final proposal.

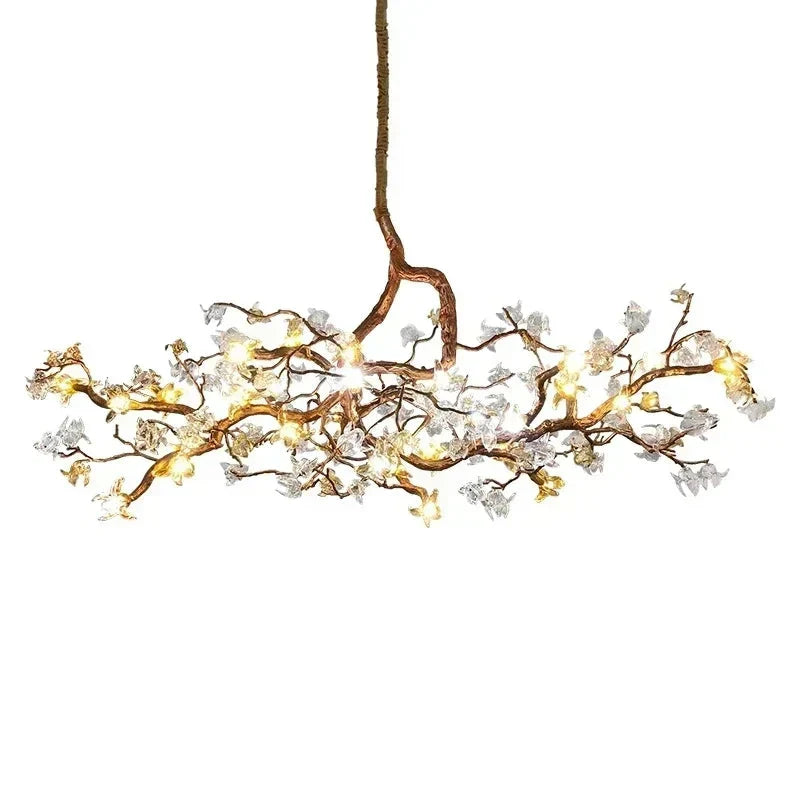

Sutober Sculptural Branch Linear Chandelier
Glass elements on a copper/metal branch structure with bronze hardware. The small size is listed at L100 × W45 cm.
The length and width help compare a narrow bay with an oriented branch body. Height and chain setting still need a separate drawing. A decorative tip can cross a beam line even when the mounting plate fits inside the bay.
Brastia Gold Crystal Linear Branch Chandelier
A linear decorative fixture with brass hardware and a gold color direction. The product lists a 120 × 50 cm size reference.
Treat this as a plan-size comparison until the complete orientation and installed height are agreed. The 50-cm direction matters as much as the 120-cm direction when the coffer bay is narrow.
Opera High Ceiling Linear Chandelier
Elongated hand-blown glass elements in linear, round, and column forms. The M linear option lists L120 × W50 × H200 cm.
Four linear layouts and separate round/column versions require different ceiling proposals. Keep the exact shape name with its size. Do not carry a canopy drawing from one form across to another simply because both belong to Opera.
Lustre Bowl Collection Chandelier
Hand-blown glass bowls in gold and white finishes. One round size is listed at Ø100 × H200 cm.
The bowl arrangement offers a contrast to a thin linear composition. The specification provides several size directions under a single product listing; resolve the exact ordered layout before judging how it sits below the beam grid.
Flying Surge LED Chandelier
Hand-blown glass in a fluid wave-like composition. Its listed size is L250 × W120 × H200 cm.
The large body is a comparison for spacious architecture. A 120-cm-wide composition cannot be judged from a small canopy footprint. Draw the body at the levels where beams, railings, and access equipment might constrain it.
Charcoal Shape Hourglass Chandelier
Black charcoal-inspired elements with chrome details in an hourglass shape. The listed size is L450 × H250 cm.
This is a monumental comparison, not a default choice for a domestic bay. The listing states no ceiling canopy is included. Obtain the complete mounting proposal and product-specific structural information rather than treating the beam as an available support.
FAQ
Can I hang the chandelier directly from a visible beam?
Only an approved structural and installation review establishes attachment. A visible beam may be decorative.
Does a small canopy guarantee a coffered-ceiling fit?
No. Compare the full body and suspension in section, including elements that project beyond the plate.
Should the chandelier follow the beam or the stair?
Compare both in the actual architecture and agree an alignment hierarchy. Keep the physical fit and mounting proposal resolved first.
Can a round chandelier work between rectangular coffers?
It can be a design comparison, but the complete body, plate, section, and access must fit the selected bay and stair.
Which drawing is most useful before purchase?
A finished ceiling plan and stair section showing beams, plate, exact body envelope, mounting reference, orientation, complete drop, and access.
